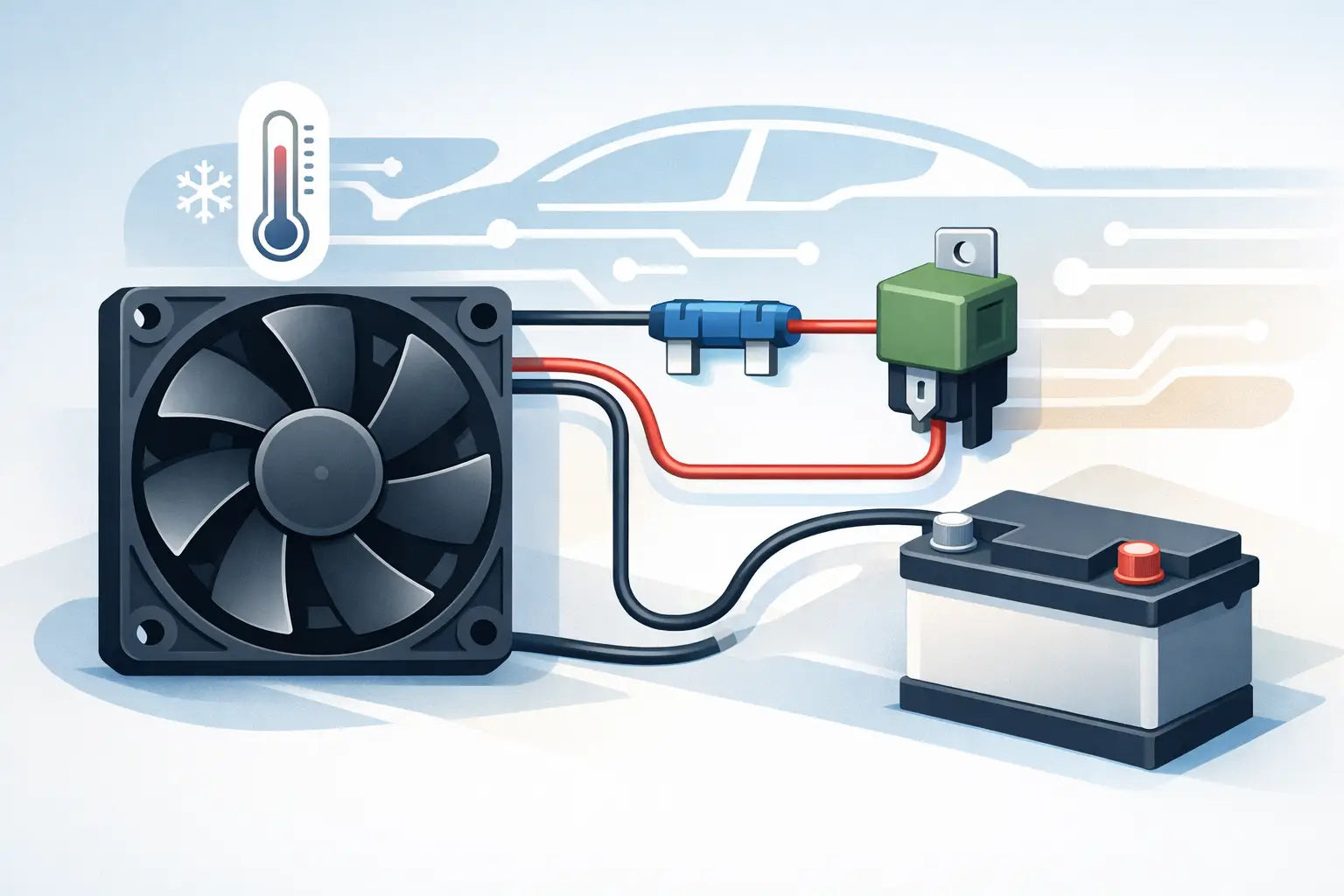

How to Wire a Cooling Fan for 12V Power
A cooling fan that runs only when it should is more than a convenience. It protects the engine in traffic, reduces heat soak after a hard pull, and keeps an electric-fan conversion from becoming the reason a reliable vehicle overheats. Learning how to wire cooling fan circuits correctly starts with one rule: the fan motor needs its own protected, relay-controlled power circuit. Do not run high fan current through a small dashboard switch, temperature sender, or factory wire that was never designed for the load.
This guide covers a typical 12-volt electric radiator fan setup for cars, trucks, vans, and performance builds. The same fundamentals apply to many marine and auxiliary cooling fan installations, but confirm the requirements of your specific equipment before wiring.
Start With the Fan's Actual Current Draw
Before buying wire, fuses, or relays, identify the fan's rated running amperage and startup amperage. A fan that draws 15 amps while running can pull substantially more for a moment when the motor starts. That inrush current is why a circuit that seems fine on paper may repeatedly blow fuses or weld relay contacts.
Check the fan label, manufacturer specifications, or instructions. If the fan has a dedicated controller, use the wiring and fuse guidance supplied with that controller. Many high-performance fans are designed to work with a specific relay harness or variable-speed controller. Replacing that system with a generic relay may cause poor fan operation or controller failure.
For a conventional single fan using a standard relay, size the fuse and relay for the fan's specified requirements, including startup load. Do not simply install a larger fuse to stop nuisance blowing. A fuse protects the wire. If the fuse rating exceeds what the wire and terminals can safely carry, the wiring becomes the weak link.
The Basic Cooling Fan Wiring Layout
A dependable single-speed fan circuit has two sides: the high-current power side and the low-current control side.
The high-current side runs from the battery or protected power distribution point, through a fuse, into the relay, and then to the fan motor. The fan's negative wire goes to a clean chassis ground or, preferably, a direct engine block ground when practical.
The control side tells the relay when to close. It normally uses a thermostatic switch, an ECU fan-control output, or a temperature controller. An optional manual override switch can command the relay on as well. The relay allows a low-current trigger circuit to control the higher current demanded by the fan motor.
A common four-pin relay uses these terminal numbers:
- Terminal 30 receives fused battery power.
- Terminal 87 sends power to the fan when the relay is energized.
- Terminal 85 and terminal 86 are the relay coil terminals.
Choose Wire, Fuse, Relay, and Connectors as a System
Wire gauge depends on current draw and the total length of the circuit. Longer runs need larger wire because voltage drop increases with distance. For many single electric fan installations, 12-gauge wire is a reasonable starting point, while higher-draw fans often need 10-gauge wire. Always match the wire to the fan manufacturer's specifications and the actual length of the run.
Use the same level of care at every connection. A quality crimp terminal, properly installed with the correct crimping tool, is better than a loose terminal covered in electrical tape. Heat-shrink terminals or sealed connectors are especially useful in the engine bay, where moisture, vibration, and heat work against ordinary connections.
Place the main fuse close to the battery or main power source. If the unfused power wire rubs through against a bracket several feet away from the battery, the fuse cannot protect that section of wire. Route harnesses away from headers, exhaust manifolds, belts, pulleys, steering shafts, and sharp sheet metal. Use loom, grommets, and secure mounting points rather than relying on zip ties alone.
For exact-fit fan connectors, relay sockets, fuses, terminals, and replacement harness components, EDS Parts can help you build or repair the circuit without replacing an entire electrical assembly.
How to Wire a Cooling Fan With a Relay
Disconnect the negative battery cable before beginning. Mount the relay in a protected area near the fan or power distribution source, but avoid locations exposed to direct water spray or exhaust heat. A relay socket with locking terminals makes future service much easier than individual loose connectors.
Run a correctly sized wire from the battery positive terminal or a main power stud to an inline fuse holder. From the fuse holder, run the protected power wire to relay terminal 30. Keep this connection short and secure.
Run the same-size wire from relay terminal 87 to the positive terminal or positive lead of the cooling fan. Connect the fan negative lead to a clean ground point. Remove paint, rust, and corrosion from the ground surface, use a properly sized ring terminal, and protect the finished connection from corrosion. A weak ground can make a fan spin slowly, cycle inconsistently, or pull excessive current.
Next, wire the relay coil. Supply switched ignition power to one coil terminal so the fan cannot run indefinitely with the key off, unless your controller is specifically intended to provide after-run cooling. Connect the other coil terminal to the thermostat switch or controller output.
If you are using a temperature switch that grounds when hot, one relay coil terminal gets keyed 12 volts and the other runs to the temperature switch. The switch grounds the coil at its set temperature, energizing the relay and powering the fan. If your thermostat supplies power when hot, it may instead feed the relay coil with 12 volts while the opposite coil terminal is grounded.
The fan should be tested before final loom and mounting. Reconnect the battery, turn the ignition on, and command the fan with the controller's test function if available. If using a thermal switch, allow the engine to reach the switch's activation temperature while closely monitoring coolant temperature.
Adding a Manual Override Switch
A manual override is useful for towing, trail use, staging lanes, or diagnosing a temperature-control issue. It should trigger the relay coil, not power the fan directly.
For a ground-triggered relay setup, connect one side of the override switch to the relay's thermostat-trigger wire and the other side to a good ground. Closing the switch grounds the relay coil and turns on the fan regardless of thermostat position. This arrangement lets either the temperature switch or the manual switch activate the same relay.
Use a protected switch circuit and label the switch clearly. A manual override is a backup, not a substitute for a correctly placed thermostat or a properly configured ECU output. If you must keep the switch on to prevent overheating, diagnose the cooling system, fan capacity, airflow direction, thermostat setting, and temperature sensor placement.
Dual Fans Need Separate Protection or a Proper Controller
Two fans can draw enough current to overwhelm a single generic relay, especially when both start at once. The best approach depends on the fans and controller. Some systems use one relay and fuse per fan, staged so the first fan starts at a lower temperature and the second comes on only when needed. Others use a purpose-built dual-fan controller that manages startup current and fan speed.
Do not join two high-draw fan motors to one undersized relay or one small shared ground. Each fan needs wiring sized for its load, and the main feed must be sized for the combined demand. A controller can simplify the trigger side, but it does not remove the need for correctly sized power wiring, fusing, and grounds.
Common Cooling Fan Wiring Problems
If the fuse blows immediately, inspect for a shorted power wire, reversed connection, damaged fan motor, or fuse rating below the fan's startup requirement. If the relay clicks but the fan does not run, test for battery voltage at terminal 30 and terminal 87 with the relay energized, then verify the fan ground.
If the fan runs whenever the key is on, the relay trigger may be permanently grounded, the thermostat may be stuck closed, or the relay terminals may be misidentified. If the fan runs backward, reverse the motor polarity only if the fan manufacturer confirms that the motor is reversible. Some fans are designed for a specific direction and blade orientation, so swapping wires may not produce usable airflow.
Also verify airflow direction before blaming the wiring. A puller fan behind the radiator should pull air through the radiator toward the engine. A pusher fan in front should push air through the radiator toward the engine bay. A correctly wired fan moving air in the wrong direction will not solve a cooling problem.
A clean, fused relay circuit gives an electric fan the current it needs without asking a small switch or aging factory harness to do a job it was never built to handle. Take the extra time to crimp, protect, and test each connection now, and the next hot day in traffic becomes a test your cooling system is ready to pass.
