A cooling fan that runs but cannot move enough air is one problem. A fan that pulls voltage through an undersized wire, overheats a relay, or blows a fuse on a hot day is another. When you wire cooling fans correctly, the system delivers full motor speed, protects the vehicle’s electrical system, and turns on when the engine actually needs help.

Electric fan wiring is not complicated, but it is not a place to guess. Fan motors draw substantial current, especially at startup. The wiring, fuse, relay, grounds, and temperature control all need to work as one circuit. That matters whether you are replacing a factory fan, installing dual SPAL fans, adding airflow to a towing vehicle, or finishing a custom performance build.

Start With Fan Current, Not Wire Color

Before selecting wire or hardware, find the fan’s rated running amperage and its startup or inrush current if the manufacturer provides it. A fan may draw 15 to 25 amps once running, but startup current can be much higher for a brief moment. Dual-fan systems can place an even larger load on the circuit if both motors start at the same time.

Do not size the circuit based only on what looks similar to an existing wire. Factory harnesses may use multiple circuits, control modules, different run lengths, or staged fan operation that is not obvious from a quick inspection. Use the specifications for the fan and build around the real load.

For many single aftermarket fans, 10- or 12-gauge primary wire is appropriate for the main power and ground paths. Larger fans, longer wire runs, or dual-fan systems may require 8-gauge wire. The correct gauge depends on amperage and circuit length, so treat those examples as a starting point rather than a universal rule.

A small trigger wire can operate a relay because it carries very little current. The wire feeding the fan motor cannot. Keeping those jobs separate is the foundation of a dependable installation.

The Basic Circuit to Wire Cooling Fans

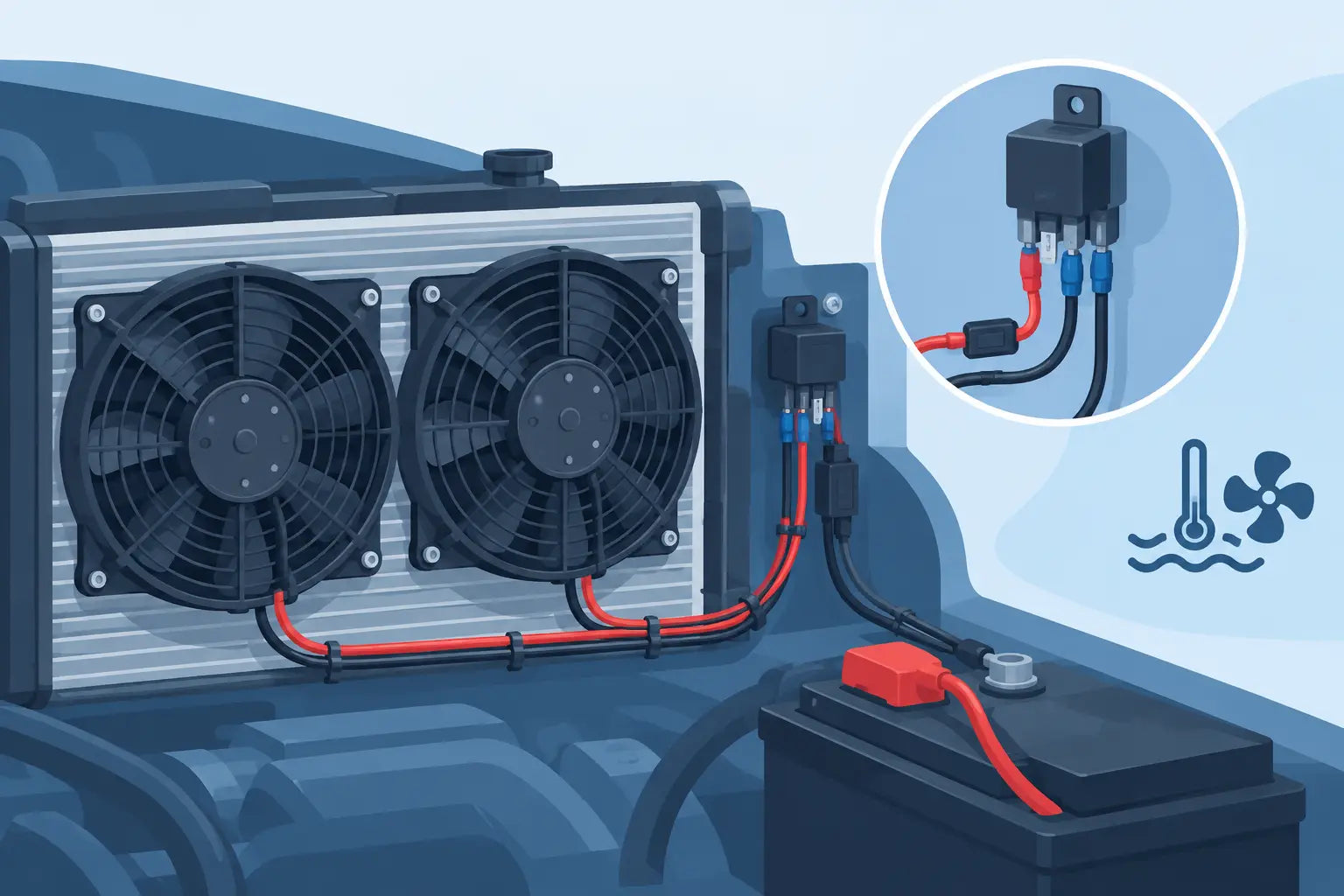

A properly protected fan circuit normally starts at a high-current power source, typically the battery or a dedicated power distribution point. The positive feed passes through a fuse, then through a relay, and finally to the fan motor. The fan motor ground should be a short, clean connection to the chassis or engine block, depending on the application.

The relay is controlled by a low-current trigger circuit. That trigger can come from a thermostatic switch, an adjustable fan controller, an ECU output, an air-conditioning request signal, or a manual override switch. The controller decides when the fan should run. The relay handles the motor load.

On a standard four-pin relay, terminal 30 is usually battery power, terminal 87 sends switched power to the fan, and terminals 85 and 86 operate the relay coil. Terminal markings can vary on specialty relays, so always verify the diagram printed on the relay housing. A five-pin relay adds terminal 87a, which is normally closed and is usually not needed for a simple fan circuit.

Place the fuse as close to the power source as practical. If the wire shorts before reaching a fuse mounted several feet away, that unfused length can become the failure point. Secure the wire in loom, route it away from exhaust heat and sharp metal edges, and support it so vibration cannot wear through the insulation.

Fuse for the Circuit You Built

The fuse protects the wire, not the fan motor. Select a fuse rating that supports normal operation without exceeding what the wire and relay can safely handle. A fuse that is too small can open during normal fan startup. One that is too large may allow damaged wiring to overheat before the fuse reacts.

A common mistake is replacing a repeatedly blown fuse with a larger one. First inspect the fan for a seized bearing, damaged blades, debris, or an internally shorted motor. Then check for pinched wiring, loose terminals, corrosion, and poor grounds. If the circuit is healthy but the fuse opens only during startup, verify the actual inrush rating and confirm the relay and fuse sizing match the fan manufacturer’s recommendations.

Use a Relay Rated for Real Load

Relay ratings deserve more attention than the number printed on the top of a generic cube relay. A relay marked 40 amps may be acceptable for one fan, but a dual-fan setup can exceed that rating at startup. Heat, vibration, high under-hood temperatures, and weak terminal connections also reduce the margin for error.

For two fans, the best choice is often one relay and fuse per fan. This gives each motor its own protected power path and avoids stacking both startup loads onto one relay. It also provides a measure of redundancy. If one circuit fails, the other fan may still operate long enough to help prevent an immediate overheating situation.

Staged operation is especially useful on vehicles with dual fans. The first fan can come on at a lower temperature for normal driving. The second can engage at a higher temperature, with air-conditioning demand, or under a high-load condition. This reduces sudden electrical load and keeps both fans from running unnecessarily.

Grounding Is Part of the Power Circuit

A fan with a weak ground may run slowly, cycle inconsistently, or create enough resistance to heat the connector and wiring. Ground connections need the same care as positive power connections.

Use a properly crimped terminal sized for the wire, attach it to clean bare metal, and protect the connection from corrosion after tightening it. Remove paint, rust, and coatings under the terminal. If you ground to the radiator support, make sure that support has a reliable bonding path to battery negative and engine ground. On some builds, running the fan ground directly to a known-good engine or battery ground point is the safer approach.

Do not depend on a rusty sheet-metal screw for a high-current fan motor. A ground that looks acceptable with a test light can still cause major voltage drop when the fan is drawing 20 amps.

Choose the Right Temperature Control Strategy

A radiator-mounted thermal switch is simple and dependable when it matches the cooling system and fan setup. It closes at a specified temperature and opens after coolant temperature falls. This works well for straightforward replacement and retrofit applications.

An adjustable electronic controller gives more flexibility. It can let you choose fan-on temperature, provide soft-start capability, and support air-conditioning inputs. Soft start can be useful because it reduces the sharp current spike that occurs when a fan starts at full speed.

ECU control is often the best option for modern engine swaps and electronically managed performance builds. The ECU can use coolant temperature, vehicle speed, air-conditioning status, and other inputs to command the fans precisely. The ECU output should still control a relay or purpose-built fan module unless it is specifically designed to carry fan-motor current.

A manual override switch can be helpful, but it should supplement automatic control rather than replace it. Wire the switch to trigger the relay, not to carry direct fan power into the cabin. If you forget to turn a manual-only fan on, the temperature gauge may be the first warning you get.

Test Voltage Drop Before Calling the Job Finished

Once the system is installed, test it under load. Let the engine reach the fan-on temperature, confirm the relay clicks, and verify that the fan turns in the correct direction. A puller fan behind the radiator should pull air through the core toward the engine. A pusher fan in front should push air through the core toward the engine bay.

Then check voltage at the fan connector while the fan is running. Compare it with battery voltage. A noticeable drop points to resistance in the power side, relay, connector, ground, or wiring. Feel the relay socket, fuse holder, and terminals after several minutes of operation. They should not be hot enough to suggest a poor connection.

Also test with the air conditioner on if the system is designed to request fan operation. Check that the wiring clears moving belts, fan blades, hood hinges, and hot exhaust components. The time to find a routing problem is before the loom has rubbed through on the road.

A clean fan installation is not just about making the engine run cooler. It protects the harness, keeps charging voltage stable, and makes future diagnosis much easier. If you need the exact relay, fuse holder, terminal, connector, or fan wiring component for the job, EDS Parts can help you build a circuit that is serviceable as well as dependable.
