A starter relay can look like a simple four- or five-pin cube, but one wrong connection can create a no-crank condition, a starter that runs after the key is released, or a damaged harness. This starter relay wiring guide focuses on the circuit logic that matters: where power enters, what turns the relay on, and where the relay sends power when you request a start.

The first rule is not to wire by color alone. Factory wire colors vary by manufacturer, model year, engine, transmission, and previous repair work. Identify each circuit by its job, confirm it with a wiring diagram and meter, then choose connectors, terminals, and wire gauge that match the current and environment under the hood.

Know What the Starter Relay Actually Does

On most vehicles, the starter relay uses a low-current ignition-switch signal to control the starter solenoid circuit. Turning the key to START, or pressing the start button, energizes a coil inside the relay. That coil closes a separate high-current contact, sending battery voltage to the starter solenoid's S terminal.

This arrangement keeps the ignition switch, park/neutral safety circuit, clutch switch, and control module from carrying the solenoid's full pull-in current. It also allows the vehicle to prevent cranking unless the transmission is in Park or Neutral, or the clutch pedal is pressed on a manual-transmission vehicle.

The relay is not usually the component that carries the main battery cable current to the starter motor. The heavy battery cable runs from the battery to the starter solenoid's large B terminal. When the solenoid receives power at its small S terminal, it engages the starter drive and connects battery power to the motor internally.

That distinction matters. A relay rated for 30 or 40 amps may be appropriate for a solenoid trigger circuit, but it is not a substitute for a properly sized starter cable, battery connection, or starter solenoid.

Starter Relay Terminal Numbers and Functions

Many automotive relays use ISO terminal numbers. A standard four-pin relay has terminals 30, 85, 86, and 87. A five-pin relay adds terminal 87a. Verify the diagram printed on the relay housing because terminal layouts and internal suppression circuits can differ.

Terminal 30 is the common power feed for the switched contact. It typically receives protected battery power through a fuse or fusible link, depending on the vehicle's original design.

Terminal 87 is the normally open output. With the relay at rest, 30 and 87 are disconnected. When the coil is energized, 30 connects to 87 and sends power to the starter solenoid trigger circuit.

Terminals 85 and 86 operate the coil. One side receives the start command, while the other side is grounded. On a basic relay, either coil terminal can often be used for power or ground. Do not assume that applies to every relay. A relay with an internal diode is polarity-sensitive, and reversing 85 and 86 can damage the diode or blow a fuse.

Terminal 87a, found on five-pin changeover relays, is normally closed. It connects to 30 when the coil is not energized and opens when the relay turns on. A conventional starter relay circuit generally uses 30 and 87, not 87a. Accidentally using 87a can leave the starter trigger powered at the wrong time.

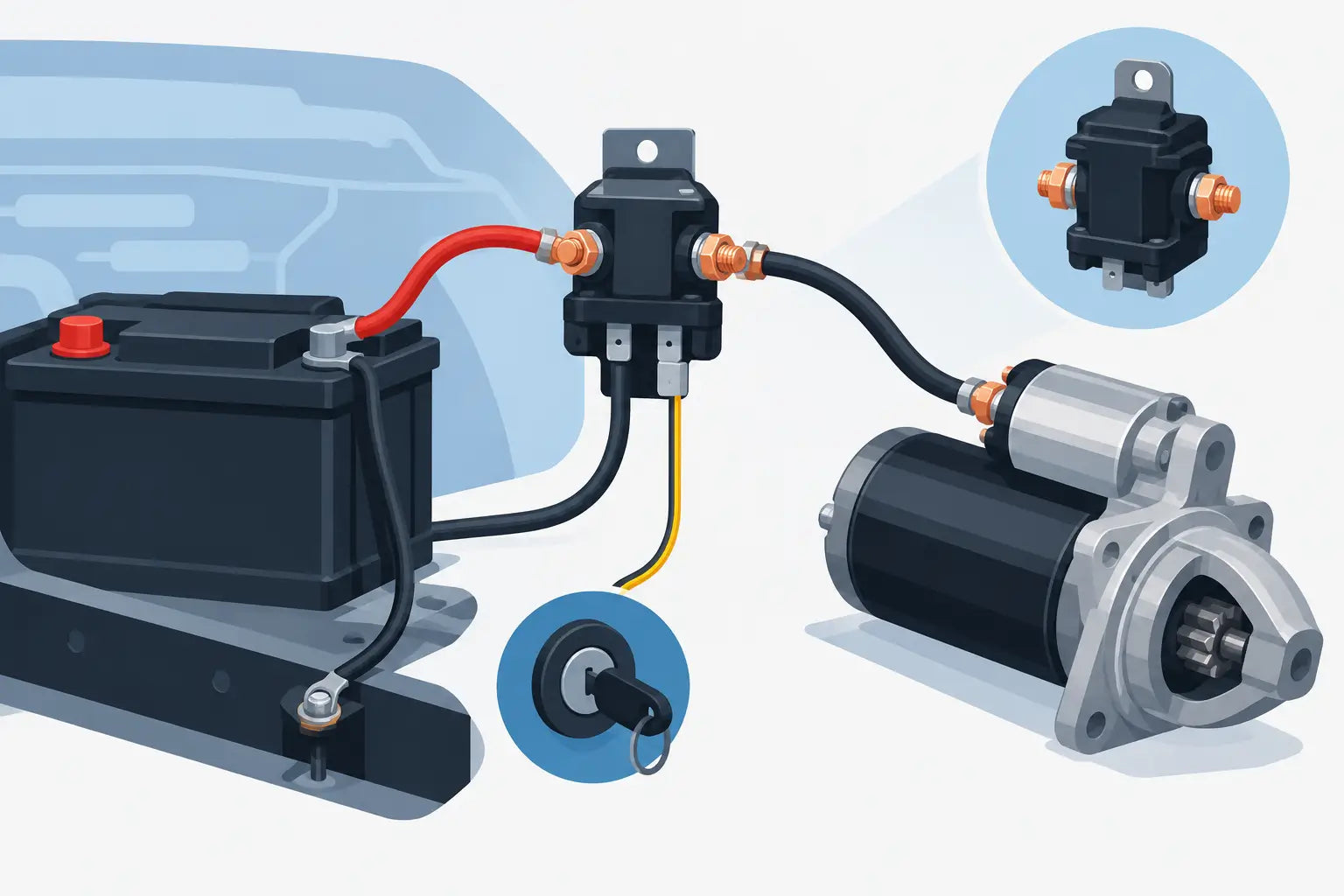

A Typical Starter Relay Wiring Layout

A basic relay-controlled starter circuit is arranged as follows:

```text
Battery positive
-> protected power feed
-> relay terminal 30

Relay terminal 87
-> starter solenoid S terminal

Ignition switch START output
-> park/neutral switch or clutch safety switch
-> relay terminal 86

Relay terminal 85
-> chassis ground or ECU-controlled ground
```

Some late-model vehicles reverse the control side. The ignition switch or body control module may provide ground to the relay coil, while terminal 86 receives ignition-fed voltage. Others use the engine control module to authorize cranking after it sees an immobilizer approval, brake input, clutch input, or proper gear position.

That is why a universal diagram is a starting point, not proof of fitment. Before modifying a factory circuit, determine whether the relay is switched on the power side or the ground side. Bypassing a module-controlled relay can defeat factory protections and create diagnostic problems later.

Choose the Right Wire, Fuse, and Connections

For a replacement repair, match the original wire gauge whenever possible. The relay's control wires commonly carry low current, but the terminal 30-to-87 path must be sized for the starter solenoid's demand and the length of the run. Undersized wire creates voltage drop, especially when the battery is already working hard during cranking.

Protect the battery feed close to its source when the circuit design calls for a fuse. The fuse protects the wire, not the relay. Use the factory fuse rating when repairing an OEM circuit. For a custom circuit, calculate the expected load, select wire that safely handles it, and choose a fuse sized to protect that wire without nuisance blowing.

The main starter battery cable is different. Because starter motors can draw very high current, many OEM starter cables are not protected by a conventional fuse. Do not add an undersized inline fuse to the main starter cable and expect reliable cranking. Follow the vehicle's original power-distribution design or an engineered high-current protection plan.

Under-hood connections need more than a tight crimp. Use quality terminals matched to the wire size and terminal style, fully support the conductor in the crimp barrel, and use sealed connectors where moisture, road salt, or splash is likely. Route the harness away from exhaust manifolds, steering shafts, sharp sheet metal, and moving linkage. Split loom and proper clips prevent a good repair from becoming a short circuit six months later.

Test the Circuit Before Replacing Parts

A no-crank complaint does not automatically mean the relay is bad. Start with battery condition and cable connections. A battery can show approximately 12.6 volts at rest yet drop too far under load because of internal failure, corrosion, or a loose terminal.

With the relay installed, listen or feel for a click while an assistant holds the key in START. A click means the coil may be receiving a command, but it does not prove the relay contacts can carry current. Check for battery voltage at terminal 30, then check terminal 87 during the start request. If 30 has power and 87 does not, despite proper coil activation, the relay is suspect.

If the relay does not click, test the control side. One coil terminal should receive the expected power or ground command during cranking. The other must have the corresponding ground or power path. On a vehicle with a park/neutral safety switch, clutch switch, immobilizer, or ECU-controlled ground, the missing command may be intentional. Diagnose that input rather than jumping wires at random.

Voltage-drop testing is especially useful when the starter clicks but cranks slowly or not at all. Measure voltage from battery positive to the solenoid B terminal while attempting to crank, then from battery negative to the starter housing. Excessive voltage loss points to cable corrosion, loose connections, damaged grounds, or undersized replacement wiring.

Common Wiring Mistakes That Cause No-Crank Problems

The most common relay mistake is mixing up 87 and 87a on a five-pin relay. Another is supplying terminal 30 from an ignition-switched source that loses voltage during crank, leaving the relay with no usable power when it is needed most.

Poor grounds are just as common. A relay coil ground may look clean but fail under load because it is attached over paint, rust, or a loose fastener. Use a known good chassis or engine ground and verify it with a voltage-drop test, not just a continuity beep.

Also watch for incorrect relay type. A relay with an internal resistor or diode can be required for a computer-controlled circuit to control voltage spikes. Replacing it with a generic relay may work temporarily but can introduce electrical noise or module faults. Match the terminal configuration, current rating, mounting style, and suppression type.

For exact replacement terminals, relay sockets, pigtails, fuse links, and under-hood power-distribution components, EDS Parts helps make targeted electrical repairs practical without replacing an entire harness or assembly.

Before you button up the repair, secure the relay, protect the harness, reconnect the battery, and test several start cycles in Park or Neutral. A starter circuit should crank only when commanded, stop immediately when the key is released, and deliver full voltage where it counts. That final check is what turns a correctly wired relay into a repair you can trust.
