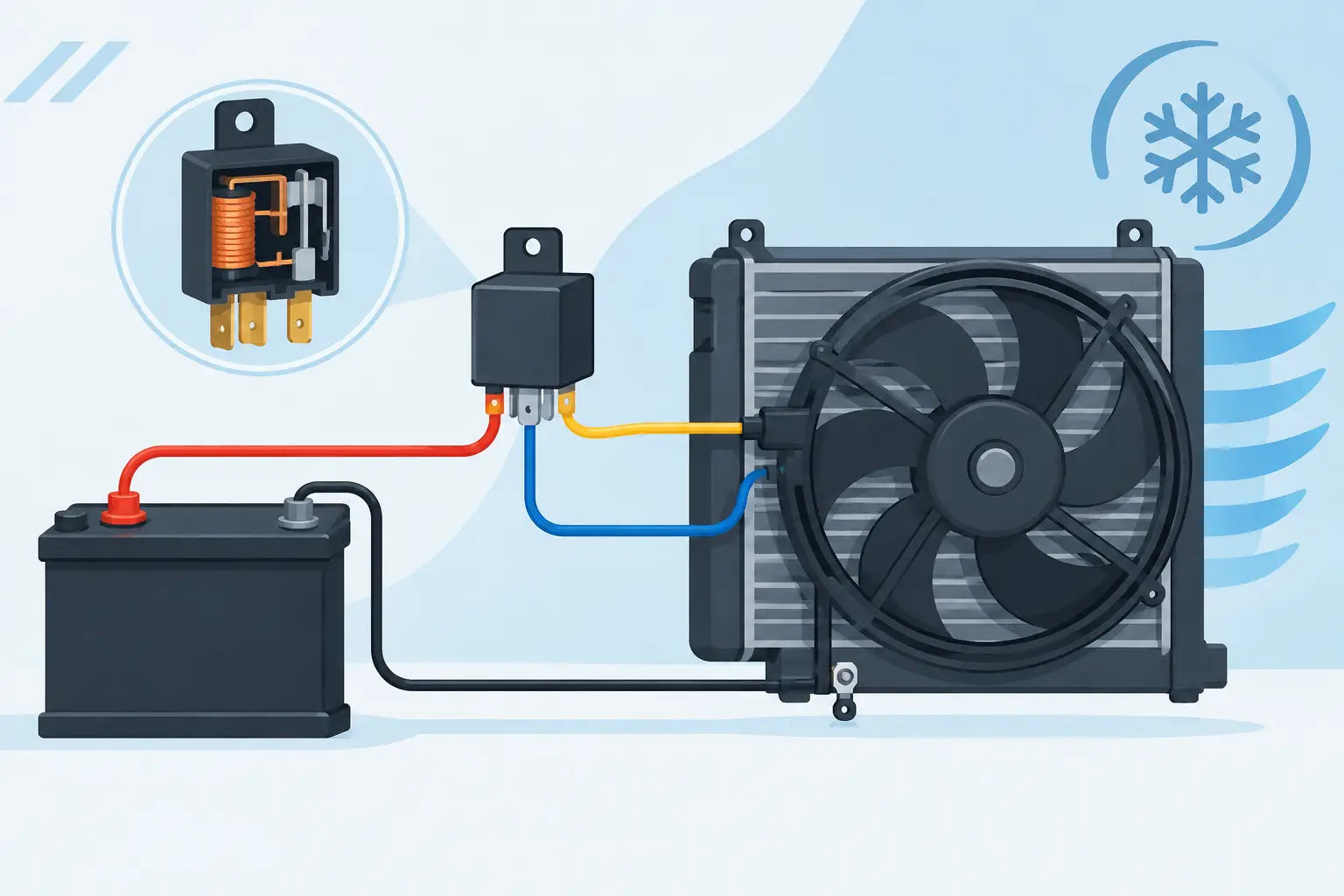

A fan that only runs sometimes, spins slowly, or melts a switch connector usually has one problem behind it: the fan motor is pulling more current than the control circuit was designed to carry. This electric fan relay wiring guide explains how to separate the high-current fan circuit from the low-current trigger circuit, so the fan gets full battery voltage without overloading a temperature switch, ECU output, or dashboard switch.

A relay is not optional hardware when you are wiring most aftermarket electric fans. It is the component that lets a small signal safely turn a much larger electrical load on and off. Whether you are replacing a failed factory fan relay, adding a SPAL fan to a restoration, or building a custom cooling system, the same fundamentals apply.

Why an Electric Fan Needs a Relay

Electric fan motors can draw a heavy surge at startup, often well above their published running amperage. A fan rated at 20 amps may briefly pull considerably more as the blades begin turning. Routing that load through a light-gauge factory wire, a universal toggle switch, or a basic thermal switch creates resistance and heat. Eventually, the weakest connection becomes discolored, loose, or burned.

A relay places the heavy-current path close to the battery or power distribution point. The thermostat, manual switch, or ECU then only energizes the relay coil. This arrangement gives the motor a shorter, lower-resistance path to power and protects the device controlling it.

For a single fan, a standard 4-pin or 5-pin automotive relay is commonly used. The relay must be rated for the actual load, including startup current. Do not select a relay based only on the fan's normal running draw. A quality 40-amp relay may suit many single-fan installations, but a high-output fan can require a higher-rated relay, heavier wiring, and a properly matched fuse.

Electric Fan Relay Wiring Guide: Terminal Functions

Most Bosch-style automotive relays use numbered terminals. The numbers matter more than the relay's physical layout, since housings and connector styles vary.

Terminal 30 is the main battery-power input. It receives fused power from the battery, starter solenoid battery terminal, or a protected power distribution block.

Terminal 87 is the switched power output to the fan's positive lead. When the relay coil is energized, terminals 30 and 87 connect internally.

Terminal 85 and terminal 86 are the relay coil terminals. One receives the trigger signal and the other connects to ground or switched power, depending on how the control circuit is designed.

A 5-pin relay also has terminal 87a. This is a normally closed output, meaning it connects to terminal 30 when the relay is off. It is not used in a standard electric fan circuit. Leaving 87a unused is correct. Do not mistake it for a second terminal 87 unless the relay is specifically marked as a dual-87 relay.

Some relays have an internal diode across the coil. Those relays are polarity-sensitive: terminal 85 and 86 must be connected exactly as marked. If you are uncertain, use the relay diagram printed on the case and verify whether it contains a resistor or diode.

Build the High-Current Side First

Start with the portion that supplies power to the fan. Disconnect the negative battery cable before making permanent connections.

Run a dedicated power wire from the battery or protected power source to an inline fuse holder, then from the fuse holder to relay terminal 30. The fuse should be installed as close to the power source as practical. That placement protects the entire length of wire if it rubs through or gets pinched against a bracket.

From terminal 87, run the correct-size wire to the fan's positive terminal. Connect the fan's negative wire to a clean chassis ground or, preferably for high-draw fans, directly to the battery negative terminal or a proven engine ground point. The ground side is just as important as the power side. A weak ground causes voltage drop, slow fan speed, excess heat, and misleading test results.

Wire gauge depends on circuit length and fan amperage. For many common single-fan circuits, 12-gauge copper wire is a reasonable starting point. Higher-amperage fans, long wire runs, or dual-fan systems may need 10-gauge wire. The relay pigtail, fuse holder, terminals, and connectors must also be rated for the load. One undersized connector can bottleneck an otherwise well-built circuit.

Fuse sizing should be based on the fan manufacturer's recommendation when available. If no specification is provided, measure actual current draw with a capable meter or clamp meter and select a fuse that tolerates normal startup without exceeding the safe capacity of the wire. Installing a larger fuse just to stop nuisance blowing is not a repair. It can turn a wiring fault into a melted harness.

Choose the Right Trigger Method

The control side of the relay is where your system decides when the fan should run. The best method depends on the vehicle and how it is used.

A standalone thermal switch is common on carbureted engines, engine swaps, and custom builds. In a typical ground-triggered setup, relay terminal 86 receives ignition-switched 12 volts through a small fuse, while terminal 85 runs to the temperature switch. When coolant reaches the switch's set temperature, the switch grounds terminal 85 and closes the relay.

Many EFI systems can control a fan relay through an ECU output. Some ECU outputs provide a ground signal, while others provide power. Confirm the output type before wiring it. An ECU ground output should not be fed battery voltage directly. Wire the relay coil so the ECU only handles the low-current coil load specified by the ECU manufacturer.

A manual override switch is useful for staging cooling in traffic, towing, or off-road use. It should trigger the relay coil, not feed the fan motor. You can wire it in parallel with a temperature switch so either device can command the fan on. This gives you manual control without defeating automatic operation.

If you want the fan to run only with the key on, use ignition-switched power on the coil circuit. If the vehicle needs after-run cooling, use a controller or ECU strategy designed to keep the relay energized after key-off. The right choice depends on battery capacity, heat soak behavior, and the vehicle's intended use.

Dual Fans Need Separate Protection

Two fans should generally use two relays and two fuses, especially when the fans are high-output units. One relay can be used only when its continuous and inrush ratings, wiring, fuse capacity, and connector ratings clearly exceed the combined draw. In real-world under-hood conditions, separate circuits are usually the more serviceable choice.

With two relays, both can be triggered by the same temperature switch or ECU command if you want both fans to start together. For staged operation, use separate temperature points or ECU outputs. For example, the primary fan can activate at a lower temperature, while the secondary fan comes on later when air conditioning head pressure rises or coolant temperature continues climbing.

Do not assume two fans will share current evenly through one undersized ground or splice. Give each fan a sound ground path and protect each positive feed correctly.

Make Connections That Survive Under the Hood

Electrical problems often begin at the terminals, not inside the relay. Crimp terminals with the correct tool, use sealed connectors where water exposure is likely, and support the harness so vibration does not pull on the relay socket. Heat shrink, abrasion loom, and proper routing away from exhaust manifolds and moving belts matter as much as the wiring diagram.

Avoid twisting wires together and covering them with tape. Also avoid Scotchlok-style taps on high-current circuits. A properly crimped, sealed splice or a quality terminal block is far more dependable and easier to diagnose later.

Mount the relay with terminals facing downward when possible. That reduces the chance of water collecting inside the connector. Keep the fuse accessible, but away from direct splash and exhaust heat.

Test Before You Trust the Repair

Before reconnecting the fan, verify that terminal 30 has battery voltage through the fuse. Then energize the trigger circuit and listen for the relay to click. A click confirms coil operation, but it does not prove the high-current contacts are passing power.

With the relay commanded on, check voltage at terminal 87 and at the fan connector. The voltage at the fan should be close to battery voltage. If it is substantially lower, inspect the fuse holder, relay terminals, splices, power wire, and ground path for voltage drop.

If the relay clicks but the fan does not run, test the fan directly with a fused jumper using appropriately sized wire. If it runs directly but not through the relay circuit, the fault is in the relay, socket, wiring, or ground. If it does not run directly, the fan motor or its connector may be failed.

The cleanest electric fan installation is not necessarily the one with the most accessories. It is the one with correctly sized wire, a fuse near the power source, solid grounds, and a relay matched to the fan's real current demand. When you need to replace a burned socket, pigtail, relay, fuse holder, or connector instead of an entire harness, EDS Parts can help you identify the exact electrical component that gets the vehicle cooling properly again.
